Specificaties
| Connection Inlet Flange | DN 63 ISO-K |
| Aansluiting vacuümuitlaatflens | DN 63 ISO-K |
| Cooling Method | Air Cooling |
| Voedingsspanning | 3Ph 200/230/400 50 Hz 3Ph 200-208/265/460 60 Hz |
| Totaal Vermogen Nominaal | 2200.00 |

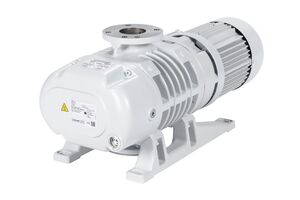

RUVAC WS 501
Onderdeelnummer:11732
Variant
Bekijk de onderstaande varianten om het product te vergelijken
| Korte beschrijving | Onderdeelnummer |
|---|---|
| 11732 | |
| 11737 |
General Product Information
| Aansluiting vacuümuitlaatflens | DN 63 ISO-K |
| Connection Inlet Flange | DN 63 ISO-K |
| Cooling Method | Air Cooling |
| Dimension Height | 0.340 |
| Dimension Length | 0.752 |
| Dimension Width | 0.310 |
| IP Rating | IP20 |
| Leak Rate | 1.000 × 10⁻⁵ |
| Voedingsfrequentie |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Voedingsspanning |
3Ph 200/230/400 50 Hz
3Ph 200-208/265/460 60 Hz |
| Weight | 130.00 |
| Dimensie Opmerkingen | De afmetingen lengte, breedte en hoogte proberen de buitenvorm van dit specifieke product te beschrijven in de typische oriëntatie wanneer het op de grond staat. Wij raden altijd aan om de gedetailleerde afmetingen in de 2D-tekeningen in de handleiding of de 3D-vormen in de 3D-modellen te controleren. |
| Aansluitflens Inlaat / Uitlaat | DN 63 ISO-K | DN 63 ISO-K |
Performance Data
| Totaal Vermogen Nominaal | 2200.00 |
| Totale Vermogen Nominaal @50Hz | 2200.00 |
| Totaal Vermogen Nominaal @60Hz | 2400.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperatuur Omgeving Bedrijf Min | 12.00 |
Classification
| Classification Dry or Wet Pump | Dry |
| Classification Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar |
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Vacuum Pump Technology | Mechanical Booster Pump |
